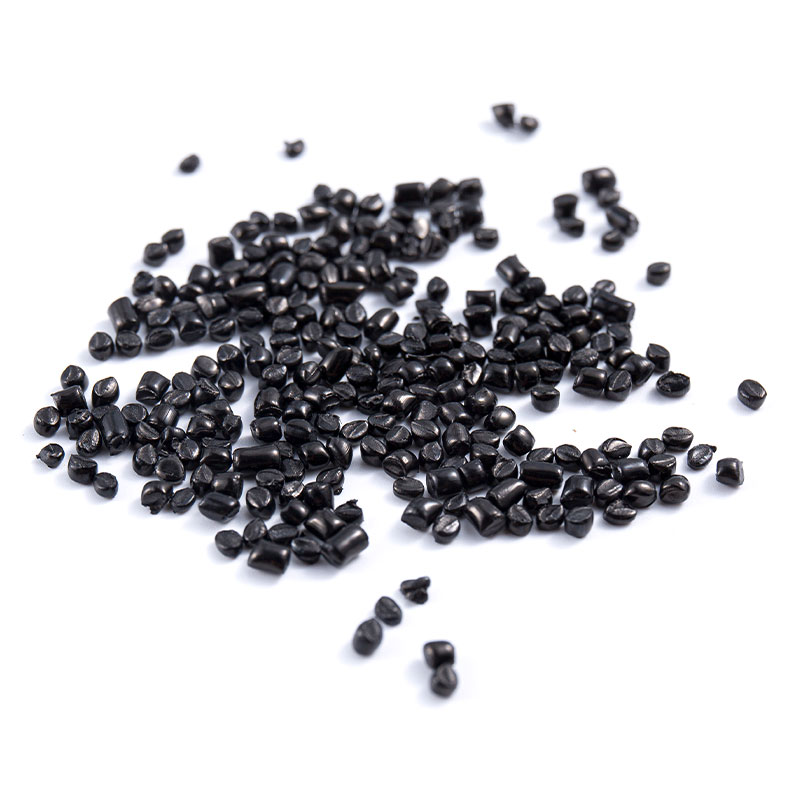

What is TPU Carrier Black Masterbatch?
TPU Carrier Black Masterbatch is a functional color concentrate prepared using thermoplastic TPU as the carrier resin, carbon black as the main coloring component, and supplemented with dispersants and stabilizers. Its main function is to provide a deep black coloring effect to the TPU substrate, while improving appearance quality, weather resistance, and process stability without affecting the original properties of the material.
Unlike general-purpose PE, PP, or PET carrier masterbatches, the core design principle of TPU carrier black masterbatch lies in molecular compatibility and property retention. Because TPU is a polymer material that combines rubber elasticity and thermoplastic processability, its molecular structure contains both soft segments and hard segments. Therefore, if the carrier resin and the TPU base material are incompatible when adding color masterbatch, problems such as interface separation, decreased mechanical properties, or uneven surface can occur.
TPU carrier black masterbatch uses a polyurethane carrier with properties similar to the final TPU product, ensuring good compatibility during mixing, avoiding delamination and bubble problems, and ensuring uniform color distribution. Simultaneously, it maintains stable material flowability and reduces melt viscosity fluctuations during extrusion, injection molding, casting, or foaming processes.
From a formulation perspective, the selection of carbon black in TPU black masterbatch is also specific. High-pigment carbon black with a particle size between 20–40 nm is typically used to ensure deep blackness and high hiding power, but the structure and surface area of the carbon black must be controlled to avoid negatively impacting the flexibility, resilience, and transparency of the TPU system. To achieve excellent dispersibility, specialized polyurethane-compatible dispersants, lubricants, and antioxidant systems are introduced into the masterbatch to ensure a stable distribution of carbon black particles within the TPU matrix.
Why is a Dedicated Carrier Black Masterbatch Required in TPU Systems?
The main reasons for using dedicated carrier black masterbatches instead of general-purpose PE or PET carrier masterbatches in TPU systems involve three aspects: material compatibility, processing stability, and performance retention.
From the perspective of chemical compatibility, the TPU molecular chain structure contains both polar groups (–NHCOO–) and flexible segments. This unique structure determines its inherent incompatibility with non-polar polyolefin carriers (such as PE or PP). If PE carrier masterbatches are used, the masterbatch cannot fully fuse with the TPU melt during the mixing process, leading to interface defects, microbubbles, or carbon black agglomeration, ultimately resulting in uneven color distribution, reduced mechanical strength of the product, and even surface streaks or bright spots.
From the perspective of processing rheology, TPU has high viscosity and a narrow melt window, making it sensitive to temperature and shear force. General-purpose masterbatches are prone to decomposition at high temperatures, releasing low-molecular-weight residues or dispersant precipitation, affecting the thermal stability and processing flowability of TPU. Specialized masterbatches using the same TPU system as the carrier have the same melt temperature and rheological behavior as the TPU substrate, enabling smooth mixing during extrusion, injection molding, or casting without affecting product controllability and surface quality.
From a performance retention perspective, TPU materials are widely used in applications requiring wear resistance, oil resistance, weather resistance, and flexibility. Using dissimilar carriers in black masterbatches can lead to reduced material elasticity, changes in hardness, or low-temperature embrittlement. However, TPU carrier masterbatches can form an interpenetrating molecular chain (IPN) structure with the substrate, maintaining excellent coloring power without compromising tensile strength and elongation.
Another key function of TPU-specific masterbatches is to improve product consistency and batch stability. High-quality black masterbatches typically possess excellent carbon black dispersibility and low volatility, helping to avoid foaming, silvering, and surface particle problems. This is particularly important for automated production lines (such as shoe material foaming injection machines and cable extruders).
Therefore, TPU carrier black masterbatches are not merely "coloring materials," but rather a systematic functional additive. By precisely matching the molecular characteristics and processing properties of TPU, it ensures comprehensive stability in appearance, mechanical properties, and reliability of the finished product, making it an indispensable key component in the industrial production of TPU products.
How to Maintain Color Stability and Prevent Mechanical Property Degradation in TPU Black Masterbatch During High-Temperature Aging Tests?
TPU carrier black masterbatch is prone to color fading, surface whitening, and decreased mechanical properties under long-term high-temperature or UV irradiation. The root cause lies in the susceptibility of polyurethane molecular chains to degradation due to heat, oxygen, UV radiation, and free radical reactions. Therefore, to maintain color stability and prevent mechanical property degradation during high-temperature aging tests, a systematic solution must be established at four levels: formulation system, carbon black dispersion, carrier matching, and process control.
From a material design perspective, TPU carrier black masterbatch should utilize high-structure, low-impurity specialty carbon black, ensuring nanoscale uniform dispersion within the TPU system. Good dispersion forms an optical shielding layer, absorbing UV radiation and some heat energy, reducing the excitation energy of the TPU main chain, thereby significantly improving anti-aging performance. Simultaneously, surface treatment of carbon black particles and compatibilizer design can effectively prevent agglomeration and interfacial stress concentration.
In terms of anti-aging systems, a multi-level stabilizing protection should be constructed: hindered phenolic antioxidants (inhibiting thermo-oxidative degradation), hindered amine light stabilizers (HALS) (scavenging free radicals), and phosphate ester processing stabilizers (inhibiting processing thermal degradation) should be introduced into the masterbatch to form a synergistic protective mechanism. Through this composite anti-aging structure, TPU black masterbatch can maintain molecular integrity and surface gloss under high temperature and UV conditions, ensuring that after accelerated aging tests (e.g., 120℃×168h or UV340 1000h), the color change ΔE is less than 1.0 and the tensile strength retention rate is higher than 90%.
However, the key to achieving this high stability lies not only in the formulation but also in the digital control and intelligent management of the manufacturing process. This is precisely the core competitiveness of the professional company E-LUCK.
As a professional manufacturer and solution provider specializing in industrial black masterbatch, E-LUCK positions itself not only as a material supplier but also as a partner for systematic performance optimization. Facing the global trend of "new materials, new environmental policies, and new application scenarios", E-LUCK continues to invest in:
- Smart Manufacturing & Digital Process Control: Through real-time data acquisition and melt monitoring systems, E-LUCK precisely controls the carbon black dispersion energy and temperature curves to ensure the thermal stability and color consistency of each batch of TPU masterbatch.
- Low-carbon Materials & Sustainable Solutions: Utilizing environmentally friendly additives and recyclable polyurethane systems reduces the carbon footprint and ensures the green performance of the masterbatch in long-life applications.
- Collaboration with Brand OEMs and Solution Providers: Through co-creation projects with brand clients in the global automotive, athletic footwear, electronics, and home furnishing industries, E-LUCK customizes anti-aging black masterbatch formulations according to application requirements, achieving system performance matching from the material end to the product end.
Product Innovation Across Multiple Sectors (Packaging, Automotive, Household & Mobility Sectors):
E-LUCK's TPU carrier black masterbatch is widely used in automotive interiors, flexible electronic protective components, wearable device housings, home appliance components, and recyclable packaging, demonstrating excellent long-term color stability and mechanical reliability in these demanding applications.
Through this series of technology-driven and sustainability-focused strategies, E-LUCK ensures that its TPU black masterbatch maintains its deep black gloss and structural stability even under high-temperature aging conditions. Through intelligent manufacturing, precise formulation, and customer collaboration, E-LUCK not only extends material lifecycles but also helps end-user brands achieve a balance between performance, environmental friendliness, and aesthetics.
